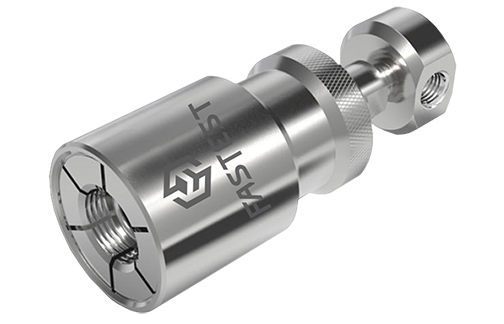

The HPB Series sleeve actuated connectors are an ideal method for fast, safe and repeatable connections to external threads and compression type fittings. Simply push the connector onto the threads or fitting to make a connection and pull sleeve away from connection to disconnect.  Instant Connections to External Threads and Compression Fittings.

Features:

• Models available for 1/4″, 3/8″ and 1/2″ NPT, SAE 37º flare threads, Swagelok® and Ferulok® fittings or similar brands, and Swivel Nut Fittings
• Instant connections from vacuum to 5000 psi eliminate tape, sealant and wrenches
• Safety feature will not allow disconnect under pressure
• No damage to threaded parts
• Easy sleeve action to connect and disconnect eliminates twisting and turning
• Split collet design locks securely
• Easy to replace main seal

Product Family                 HPB Series

Connection type               Swivel nut

Connection Method         Sleeve actuated

Connects to                     -4 female swivel SAE ORFS

Pressure rating                5000 psi (344.7 bar)

Termination                      1/8″ NPT (female)
