Directional Valve Patterns
These drawings are for reference only. Please consult the appropriate standard when dimensions are critical. Dimensions may vary on our products. It should not be assumed that each hole shown is found on a given product.
| Pattern | Axis | P | A | T | T₁ | B | X | Y | L | F1 | F2 | F3 | F4 | F5 | F6 | G1 | G2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

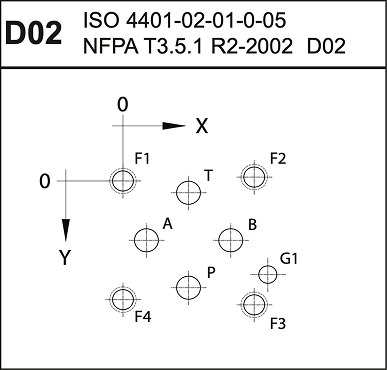

| D02 | X | 0.472 [12.0] |
0.169 [4.3] |
0.472 [12.0] |
-- | 0.776 [19.7] |
-- | -- | -- | 0 [0] |
0.945 [24.0] |
0.945 [24.0] |
0 [0] |
-- | -- | 1.043 [26.5] |
-- |
| Y | 0.797 [20.25] |
0.443 [11.25] |
0.089 [2.25] |
-- | 0.443 [11.25] |
-- | -- | -- | 0 [0] |
-0.030 [-0.75] |
0.915 [23.25] |
0.886 [22.5] |
-- | -- | 0.699 [17.75] |
-- | |
| φ (max) | 0.177 [4.5] |
0.177 [4.5] |
0.177 [4.5] |
-- | 0.177 [4.5] |
-- | -- | -- | #10-24 M5 |
#10-24 M5 |
#10-24 M5 |
#10-24 M5 |
-- | -- | 0.134 [3.4] |
-- | |

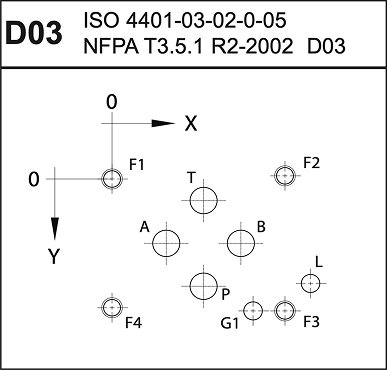

| D03 | X | 0.847 [21.5] |
0.500 [12.7] |
0.847 [21.5] |
-- | 1.189 [30.2] |
-- | -- | 1.831 [46.5] |
0 [0] |
1.595 [40.5] |
1.595 [40.5] |
0 [0] |
-- | -- | 1.299 [33.0] |
-- |
| Y | 1.020 [25.9] |
0.610 [15.5] |
0.201 [5.1] |
-- | 0.610 [15.5] |
-- | -- | 0.988 [25.1] |
0 [0] |
-0.030 [-0.75] |
1.250 [31.75] |
1.221 [31.0] |
-- | -- | 1.250 [31.75] |
-- | |
| φ (max) | 0.295 [7.5] |
0.295 [7.5] |
0.295 [7.5] |
-- | 0.295 [7.5] |
-- | -- | 0.158 [4.0] |
#10-24 M5 |
#10-24 M5 |
#10-24 M5 |
#10-24 M5 |
-- | -- | 0.158 [4.0] |
-- | |

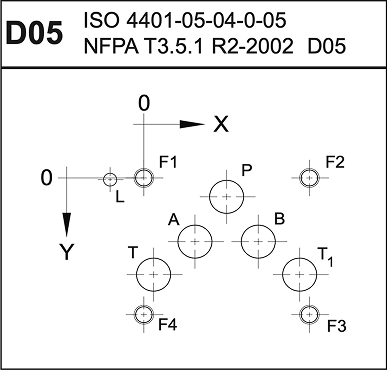

| D05 | X | 1.063 [27.0] |
0.658 [16.7] |
0.126 [3.2] |
2.000 [50.8] |
1.469 [37.3] |
-- | -0.433 [-11.0] |
0 [0] |
2.126 [54.0] |
2.126 [54.0] |
0 [0] |
-- | -- | -- | -- | -- |
| Y | 0.248 [6.3] |
0.843 [21.4] |
1.280 [32.5] |
1.280 [32.5] |
0.843 [21.4] |
-- | 0.020 [0.5] |
0 [0] |
0 [0] |
1.811 [46.0] |
1.811 [46.0] |
-- | -- | -- | -- | -- | |
| φ (max) | 0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
-- | 0.177 [4.5] |
-- | 25-20 M6 |
25-20 M6 |
25-20 M6 |
25-20 M6 |
-- | -- | -- | -- | |

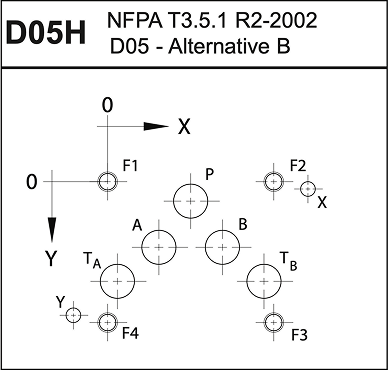

| D05H | X | 1.063 [27.0] |
0.658 [16.7] |
0.126 [3.2] |
2.000 [50.8] |
1.469 [37.3] |
2.563 [65.1] |
-0.441 [-11.2] |
-- | 0 [0] |
2.126 [54.0] |
2.126 [54.0] |
0 [0] |
-- | -- | -- | -- |
| Y | 0.248 [6.3] |
0.843 [21.4] |
1.280 [32.5] |
1.280 [32.5] |
0.843 [21.4] |
0.095 [2.4] |
1.721 [43.7] |
-- | 0 [0] |
0 [0] |
1.811 [46.0] |
1.811 [46.0] |
-- | -- | -- | -- | |
| φ (max) | 0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.189 [4.8] |
0.189 [4.8] |
-- | .25-20 M6 |
.25-20 M6 |
.25-20 M6 |
.25-20 M6 |
-- | -- | -- | -- | |

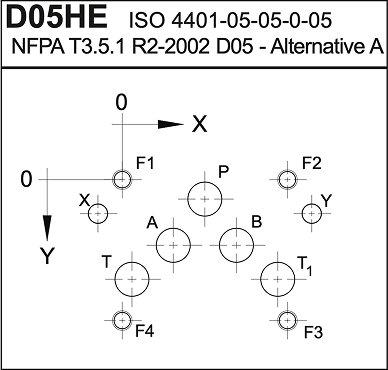

| D05HE | X | 1.063 [27.0] |
0.658 [16.7] |
0.126 [3.2] |
2.000 [50.8] |
1.469 [37.3] |
-0.315 [-8.0] |
2.441 [62.0] |
-- | 0 [0] |
2.126 [54.0] |
2.126 [54.0] |
0 [0] |
-- | -- | -- | -- |
| Y | 0.248 [6.3] |
0.843 [21.4] |
1.280 [32.5] |
1.280 [32.5] |
0.843 [21.4] |
0.433 [11.0] |
0.433 [11.0] |
-- | 0 [0] |
0 [0] |
1.811 [46.0] |
1.811 [46.0] |
-- | -- | -- | -- | |
| φ (max) | 0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
0.248 [6.3] |
0.248 [6.3] |
-- | .25-20 M6 |
.25-20 M6 |
.25-20 M6 |
.25-20 M6 |
-- | -- | -- | -- | |

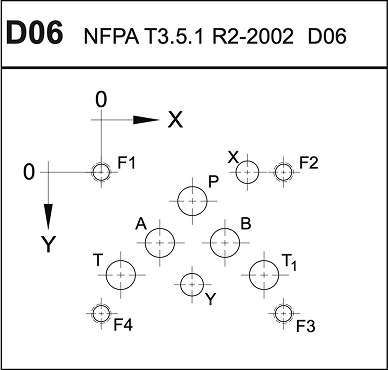

| D06 | X | 1.750 [44.45] |
1.120 [28.45] |
0.380 [9.65] |
3.120 [79.25] |
2.380 [60.45] |
2.811 [71.4] |
1.750 [44.45] |
-- | 0 [0] |
3.500 [88.9] |
3.500 [88.9] |
0 [0] |
-- | -- | -- | -- |
| Y | 0.561 [14.25] |
1.380 [35.05] |
2.000 [50.8] |
2.000 [50.8] |
1.380 [35.05] |
0 [0] |
2.180 [55.37] |
-- | 0 [0] |
0 [0] |
2.750 [69.85] |
2.750 [69.85] |
-- | -- | -- | -- | |
| φ (max) | 0.579 [14.7] |
0.579 [14.7] |
0.579 [14.7] |
0.579 [14.7] |
0.579 [14.7] |
0.441 [11.2] |
0.441 [11.2] |
-- | .38-16 M10 |
.38-16 M10 |
.38-16 M10 |
.38-16 M10 |
-- | -- | -- | -- | |

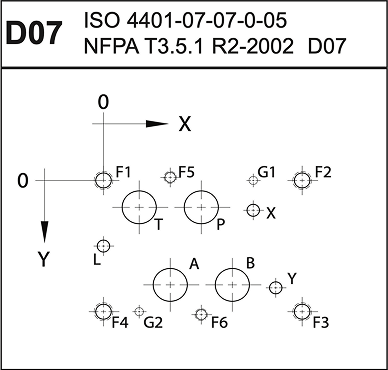

| D07 | X | 1.969 [50.0] |
1.343 [34.1] |
0.721 [18.3] |
-- | 2.595 [65.9] |
3.016 [76.6] |
3.469 [88.1] |
0 [0] |
0 [0] |
4.000 [101.6] |
4.000 [101.6] |
0 [0] |
1.343 [34.1] |
1.969 [50.0] |
3.016 [76.6] |
0.721 [18.3] |
| Y | 0.563 [14.3] |
2.189 [55.6] |
0.563 [14.3] |
-- | 2.189 [55.6] |
0.626 [15.9] |
2.252 [57.2] |
1.374 [34.9] |
0 [0] |
0 [0] |
2.752 [69.9] |
2.752 [69.9] |
-0.063 [-1.6] |
2.815 [71.5] |
0 [0] |
2.752 [69.9] |
|
| φ (max) | 0.689 [17.5] |
0.689 [17.5] |
0.689 [17.5] |
-- | 0.689 [17.5] |
0.248 [6.3] |
0.248 [6.3] |
0.248 [6.3] |
.38-16 M10 |
.38-16 M10 |
.38-16 M10 |
.38-16 M10 |
.25-20 M6 |
.25-20 M6 |
0.158 [4.0] |
0.158 [4.0] |
|

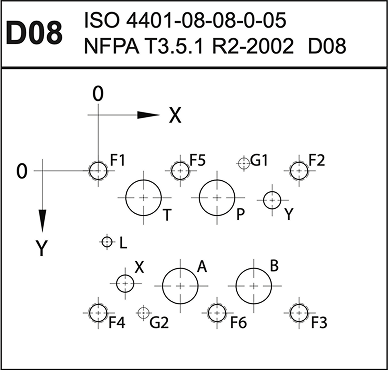

| D08 | X | 3.032 [77.0] |
2.095 [53.2] |
1.158 [29.4] |
-- | 3.969 [100.8] |
0.689 [17.5] |
4.437 [112.7] |
0.221 [5.6] |
0 [0] |
5.126 [130.2] |
5.126 [130.2] |
0 [0] |
2.095 [53.2] |
3.032 [77.0] |
3.721 [94.5] |
1.158 [29.4] |
| Y | 0.689 [17.5] |
2.937 [74.6] |
0.689 [17.5] |
-- | 2.937 [74.6] |
2.874 [73.0] |
0.748 [19.0] |
1.811 [46.0] |
0 [0] |
0 [0] |
3.626 [92.1] |
3.626 [92.1] |
0 [0] |
3.626 [92.1] |
-0.189 [-4.8] |
3.626 [92.1] |
|
| φ (max) | 0.984 [25.0] |
0.984 [25.0] |
0.984 [25.0] |
-- | 0.984 [25.0] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
.50-13 M12 |
.50-13 M12 |
.50-13 M12 |
.50-13 M12 |
.50-13 M12 |
.50-13 M12 |
0.295 [7.5] |
0.295 [7.5] |
|

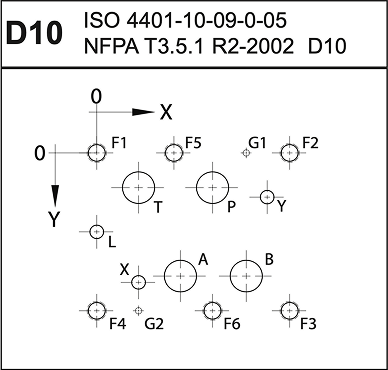

| D10 | X | 4.500 [114.3] |
3.248 [82.5] |
1.626 [41.3] |
-- | 5.811 [147.6] |
1.626 [41.3] |
6.626 [168.3] |
0 [0] |
0 [0] |
7.500 [190.5] |
7.500 [190.5] |
0 [0] |
3.000 [76.2] |
4.500 [114.3] |
5.457 [138.6] |
1.626 [41.3] |
| Y | 1.378 [35.0] |
4.874 [123.8] |
1.378 [35.0] |
-- | 4.874 [123.8] |
5.126 [130.2] |
1.752 [44.5] |
3.126 [79.4] |
0 [0] |
0 [0] |
6.252 [158.8] |
6.252 [158.8] |
0 [0] |
6.252 [158.8] |
0 [0] |
6.252 [158.8] |
|
| φ (max) | 1.260 [32.0] |
1.260 [32.0] |
1.260 [32.0] |
-- | 1.260 [32.0] |
0.441 [11.2] |
0.441 [11.2] |
0.441 [11.2] |
.75-10 M20 |
.75-10 M20 |
.75-10 M20 |
.75-10 M20 |
.75-10 M20 |
.75-10 M20 |
0.295 [7.5] |
0.295 [7.5] |
